KVVP2-22 2×0.75-4×10控制電纜

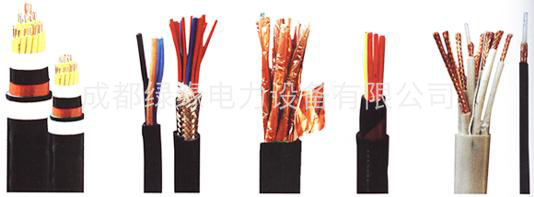

一、產品介紹
控制屏蔽電纜用于交流額定電壓450V/750V及以下控制監控回路及保護線路等場所。其中屏蔽型控制電纜，由于具有良好的評比性能得到電廠，電站的大量使用，電纜敷設在市內、電纜溝、管道、直埋、豎井等能承受較大機械拉力的固定場所。
二、使用特性
1、導體長期允許工作溫度為70℃。
2、敷設時環境溫度≥0℃。
3、最小彎曲半徑：
無鎧裝層電纜，應不小于電纜外徑的6倍。
有鎧裝或銅帶屏蔽結構電纜，應不小于電纜外徑的12倍。
有屏蔽結構的軟電纜，應不小于電纜外徑的6倍。
KVVP2-22 2×0.75-4×10控制電纜參數：
| 芯數及導體標稱截面mm2 | 導體結構 | 絕緣厚度mm | 銅帶厚度mm | 鋼帶厚度mm | 護套厚度mm | 電纜近似外徑mm | 電纜近似重量kg/km | ||||
| 450/750V | 0.6/1KV | 450/750V | 0.6/1KV | 450/750V | 0.6/1KV | 450/750V | 0.6/1KV | ||||
| 2×0.75 | 1/0.97 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 11.0 | 12.4 | 189 | 228 |
| 2×1.0 | 1/1.13 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 11.3 | 12.7 | 202 | 242 |
| 2×1.5 | 1/1.38 | 0.7 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 12.2 | 13.2 | 236 | 265 |
| 2×2.5 | 1/1.78 | 0.8 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 13.4 | 15.0 | 287 | 306 |
| 2×4 | 1/2.25 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 14.4 | 15.8 | 340 | 387 |
| 2×6 | 1/2.76 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 15.4 | 16.8 | 404 | 454 |
| 2×10 | 7/1.35 | 1.0 | 1.0 | 1×0.5 | 2×0.2 | 1.7 | 1.8 | 19.2 | 19.4 | 598 | 607 |
| 3×0.75 | 1/0.97 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 11.3 | 12.8 | 207 | 249 |
| 3×1.0 | 1/1.13 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 11.7 | 13.1 | 223 | 266 |
| 3×1.5 | 1/1.38 | 0.7 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 12.6 | 13.7 | 264 | 295 |
| 3×2.5 | 1/1.78 | 0.8 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 13.9 | 14.5 | 328 | 348 |
| 3×4 | 1/2.25 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 14.9 | 16.4 | 397 | 450 |
| 3×6 | 1/2.76 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 16.0 | 17.5 | 483 | 538 |
| 3×10 | 7/1.35 | 1.0 | 1.0 | 1×0.5 | 2×0.2 | 1.7 | 1.8 | 20.1 | 20.3 | 727 | 736 |
| 4×0.75 | 1/0.97 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 11.9 | 13.5 | 230 | 278 |
| 4×1.0 | 1/1.13 | 0.6 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 12.3 | 13.8 | 250 | 299 |
| 4×1.5 | 1/1.38 | 0.7 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 13.4 | 14.4 | 300 | 335 |
| 4×2.5 | 1/1.78 | 0.8 | 0.8 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 14.8 | 15.4 | 379 | 400 |
| 4×4 | 1/2.25 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 15.9 | 17.5 | 466 | 526 |
| 4×6 | 1/2.67 | 0.8 | 1.0 | 1×0.5 | 2×0.2 | 1.5 | 1.8 | 17.2 | 18.7 | 574 | 638 |
| 4×10 | 7/1.35 | 1.0 | 1.0 | 1×0.5 | 2×0.2 | 1.7 | 1.8 | 21.7 | 21.9 | 877 | 886 |
