KVV22 19×0.75-61×2.5 控制電纜
產品介紹

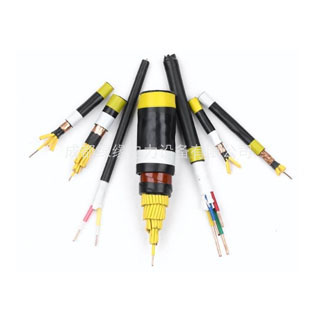

KVV22 19×0.75-61×2.5 控制電纜
使用特性：額定電壓：U0/U為450/750V
電纜導體的允許長期最高工作溫度為70℃。電纜敷設時環境溫度不低于0℃。電纜的允許彎曲半徑：無鎧裝層及有紡織屏蔽的電纜，應不小于電纜外徑的6倍；有鎧裝或銅帶屏蔽結構的電纜，應不小于電纜外徑的12倍
用途：本產品供交流額定電壓500V或直流電壓1000V及以下配電裝置中電器，儀表接線之用。
KVV22 19×0.75-61×2.5 控制電纜規格參數：
| 芯數×標稱截面 | 電纜參考外徑mm | 電纜參考重量mm | 20℃******直流電阻 | 70℃最小絕緣電阻 |
| 19×0.75 | 17.8 | 489 | 24.5 | 0.012 |
| 19×1.0 | 19.0 | 576 | 18.1 | 0.011 |
| 19×1.5 | 21.3 | 744 | 12.1 | 0.011 |
| 19×2.5 | 24.4 | 1032 | 7.41 | 0.010 |
| 24×0.75 | 20.5 | 611 | 24.5 | 0.012 |
| 24×1.0 | 21.4 | 399 | 18.1 | 0.011 |
| 24×1.5 | 24.2 | 912 | 12.1 | 0.011 |
| 24×2.5 | 27.9 | 1275 | 7.41 | 0.010 |
| 27×0.75 | 20.8 | 646 | 24.51 | 0.012 |
| 27×1.0 | 21.8 | 743 | 18.1 | 0.011 |
| 27×1.5 | 24.6 | 974 | 12.1 | 0.011 |
| 27×2.5 | 28.4 | 1371 | 7.41 | 0.010 |
| 30×0.75 | 21.4 | 692 | 24.5 | 0.012 |
| 30×1.0 | 22.4 | 799 | 18.1 | 0.011 |
| 30×1.5 | 25.4 | 1052 | 12.1 | 0.011 |
| 30×2.5 | 29.3 | 1489 | 7.41 | 0.010 |
| 37×0.75 | 22.7 | 796 | 24.5 | 0.012 |
| 37×1.0 | 23.8 | 924 | 18.1 | 0.011 |
| 37×1.5 | 27.0 | 1227 | 12.1 | 0.011 |
| 37×2.5 | 33.1 | 2092 | 7.41 | 0.010 |
| 44×0.75 | 24.9 | 923 | 24.5 | 0.012 |
| 44×1.0 | 26.2 | 1075 | 18.1 | 0.011 |
| 44×1.5 | 31.7 | 1757 | 12.1 | 0.011 |
| 44×2.5 | 37.0 | 2472 | 7.41 | 0.010 |
| 48×0.75 | 25.3 | 970 | 24.5 | 0.012 |
| 48×1.0 | 26.6 | 1133 | 18.1 | 0.011 |
| 48×1.5 | 32.2 | 1845 | 12.1 | 0.011 |
| 48×2.5 | 37.6 | 2607 | 7.41 | 0.010 |
| 52×0.75 | 25.9 | 1027 | 24.5 | 0.012 |
| 52×1.0 | 27.2 | 1203 | 18.1 | 0.011 |
| 52×1.5 | 32.9 | 1952 | 12.1 | 0.011 |
| 52×2.5 | 38.5 | 2767 | 7.41 | 0.010 |
| 61×0.75 | 27.2 | 1153 | 24.5 | 0.012 |
| 61×1.0 | 28.6 | 1356 | 18.1 | 0.011 |
| 61×1.5 | 34.6 | 2187 | 12.1 | 0.011 |
| 61×2.5 | 40.5 | 3122 | 7.41 | 0.010 |
